• Vertex is a brand name under All Balls Racing
• Gasket material made from MP-2N Pro-Formance™ MicroPore

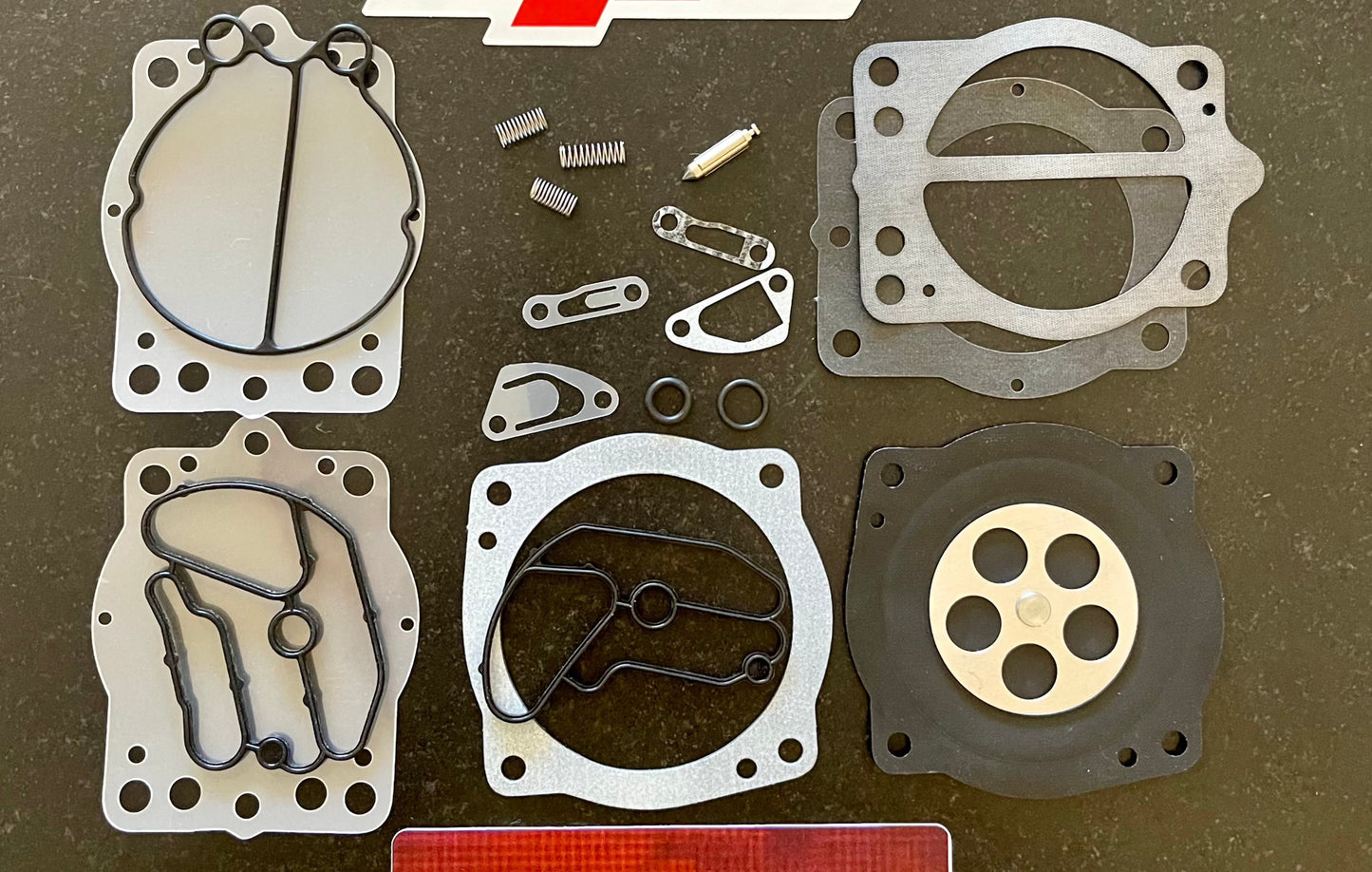

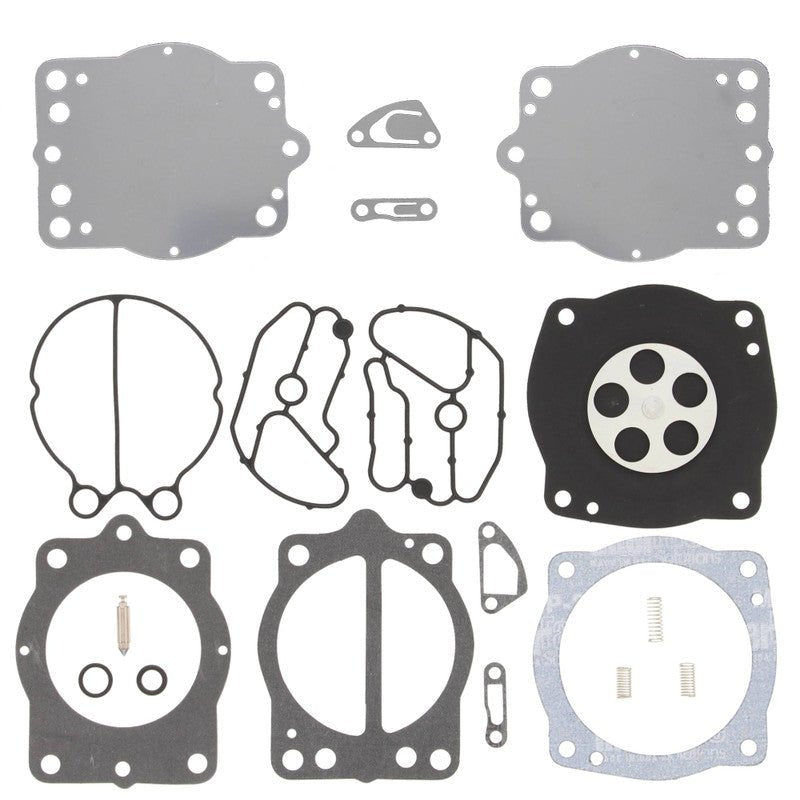

• All parts needed for a complete rebuild of 28-44mm Keihin CDK carburettors
• Not for use with constant velocity carburetors

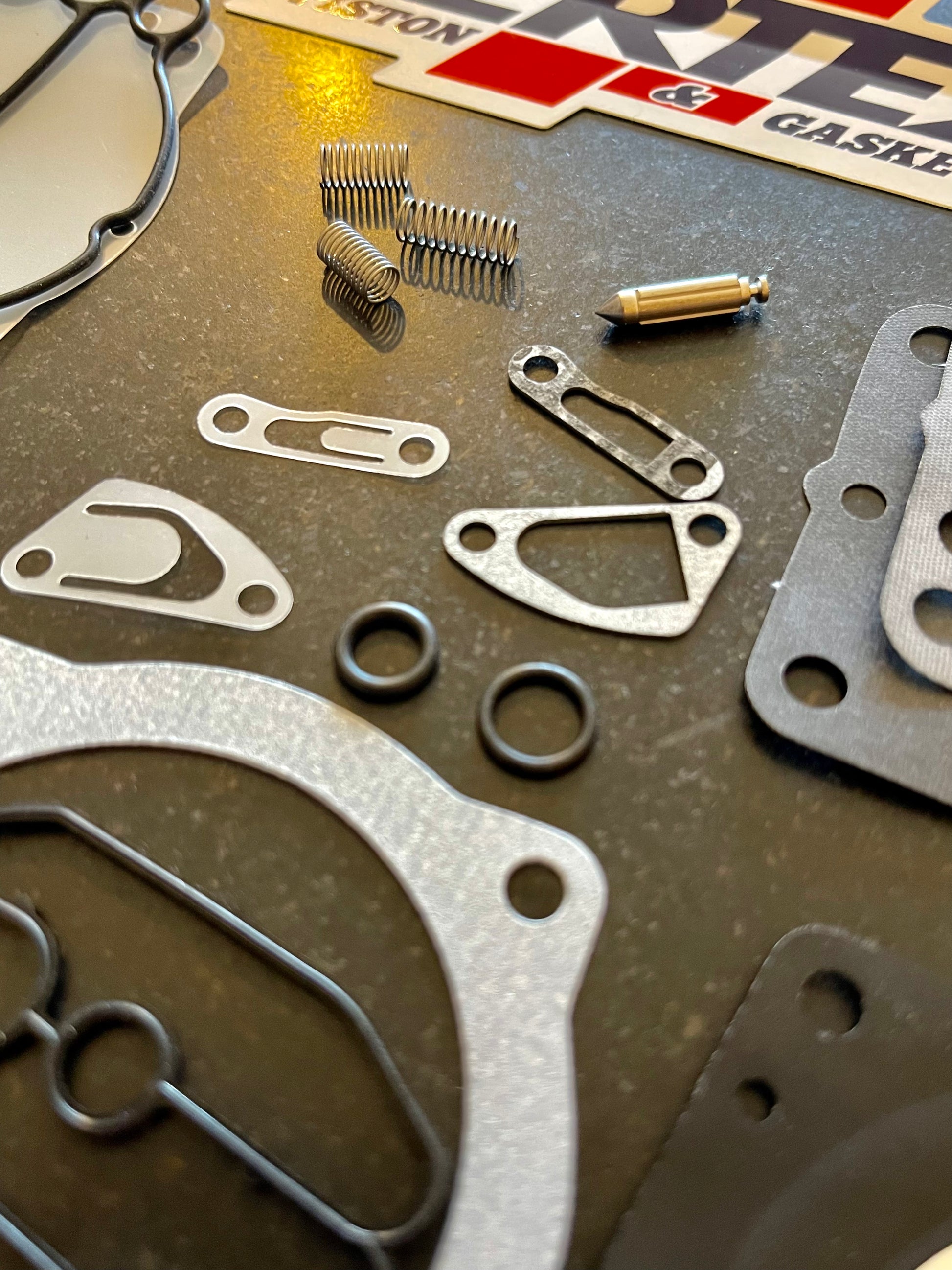

• Kits include Viton™ tipped inlet needle
• Includes 3 new springs to set/tune desired pop off pressure
• Made in USA to the highest standards
• 1 Year Warranty

MP-2N Pro-Formance™ MicroPore

Engineered for automotive power train, marine and small engine applications

MP - 2N provides excellent sealability and thermal integrity in coolant, lubrication and induction systems. The material is suitable for problem flanges including those with rough surfaces and/or long bolt spans, and handles intermittent operating temperatures up to 205°C (400°F).

Applications include general automotive, motorcycle, small engine and marine sealing.

MATERIAL PROPERTIES

• • Density: g/cc (lb/ft3) 1.35 (84)
  • Tensile Strength: MPa (psi) 8.28 (1200)
  • Compressibility: % 13-25
  • Recovery: % 35
  • Nitrogen Seal: cc/min (1 Bar, 9 MPa Clamp) 0.33
  • Creep Relaxation: % 22
  • Fluid seal, Oil @ 4 Bar: MPa (psi) 9.0 (1300)
• • Fluid seal, A/F @ 1 Bar: MPa (psi) 21.0 (3000)
  • Compressive Strength: MPa (psi) 124 (18000)
  • Median Pore Diameter: microns 0.15
  • Coefficient of Friction (aluminum) 0.35
  • Coefficient of Friction (iron/steel) 0.34
